ATD-PH45

ATD MODEL of PH45

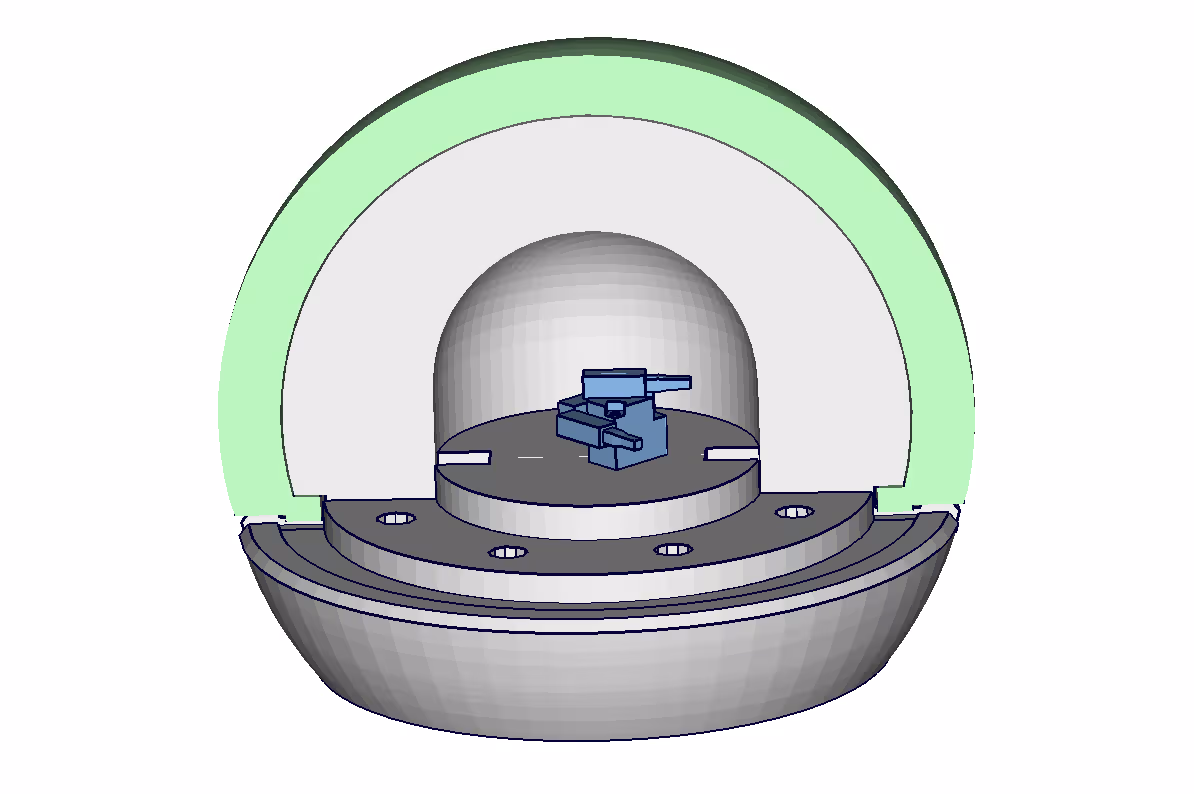

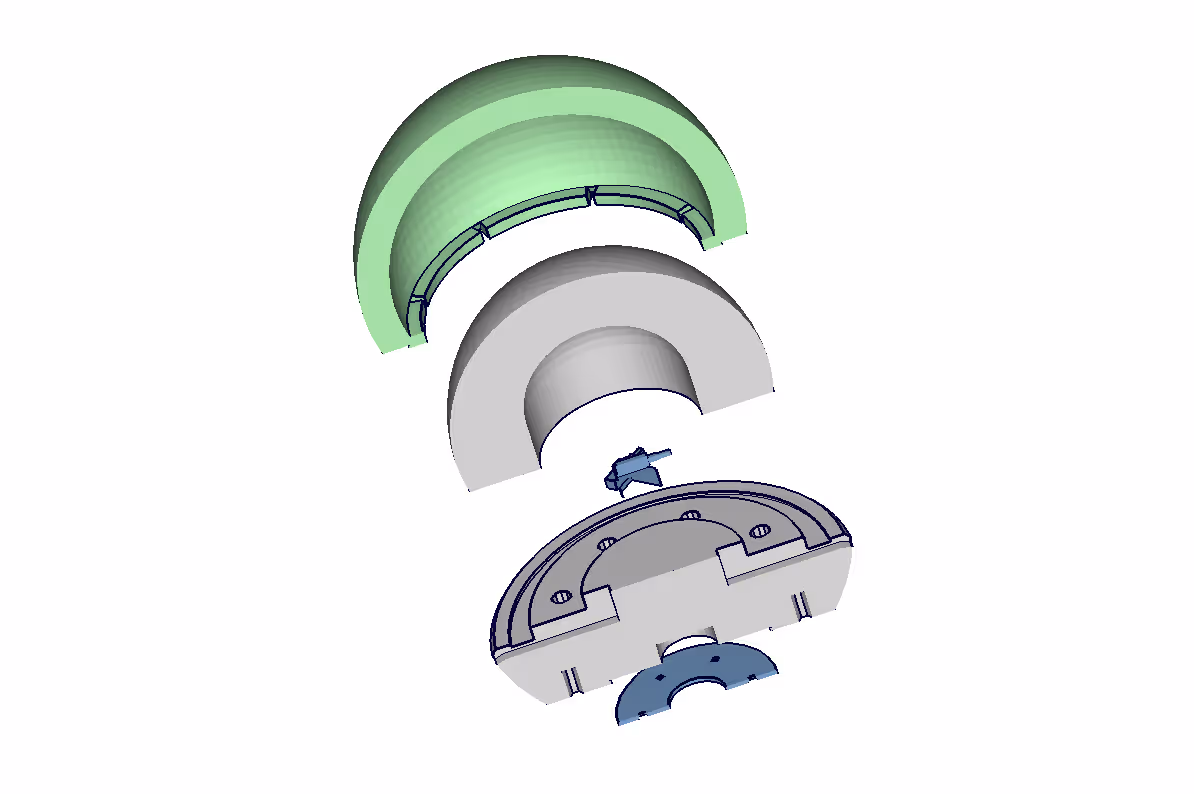

The ATD-PH35 is a spherical headform impactor for pedestrian protection tests. It is launched at windshields and hoods to measure the head loads of a pedestrian in a vehicle-to-pedestrian impact.

Some key characteristics of the ATD-PH45 are:

Design: Realistic representation of the geometries.
Handling: Designed for launch devices/robotic arms with magnetic or mechanical attachment/release.
Standards: Adult 4.5-kg configuration according to EEVC WG17; derived from WG10 headforms (EuroNCAP).

‍
